Strato Cycles

Strato DSO-22 Dropouts

Strato DSO-22 Dropouts

Regular price $75.00 USD
Regular price Sale price $75.00 USD
Sale Sold out

Created to provide maximum flexibility for the frame builder,


• 22mm wide flanges perfect for 3/4" tubing

• Flanges cover a 90° arc allowing unique vertical seat stay bends

• Mitering uses a 1 3/8" hole saw - same diameter as other common frame tubes

• Compatibility with all Paragon Machine Works and Nova Cycles/Allotec inserts

• 20mm of forward/aft slide

• CNC'd from easy to weld 1018 mild steel - 2mm thick flange resists melting away

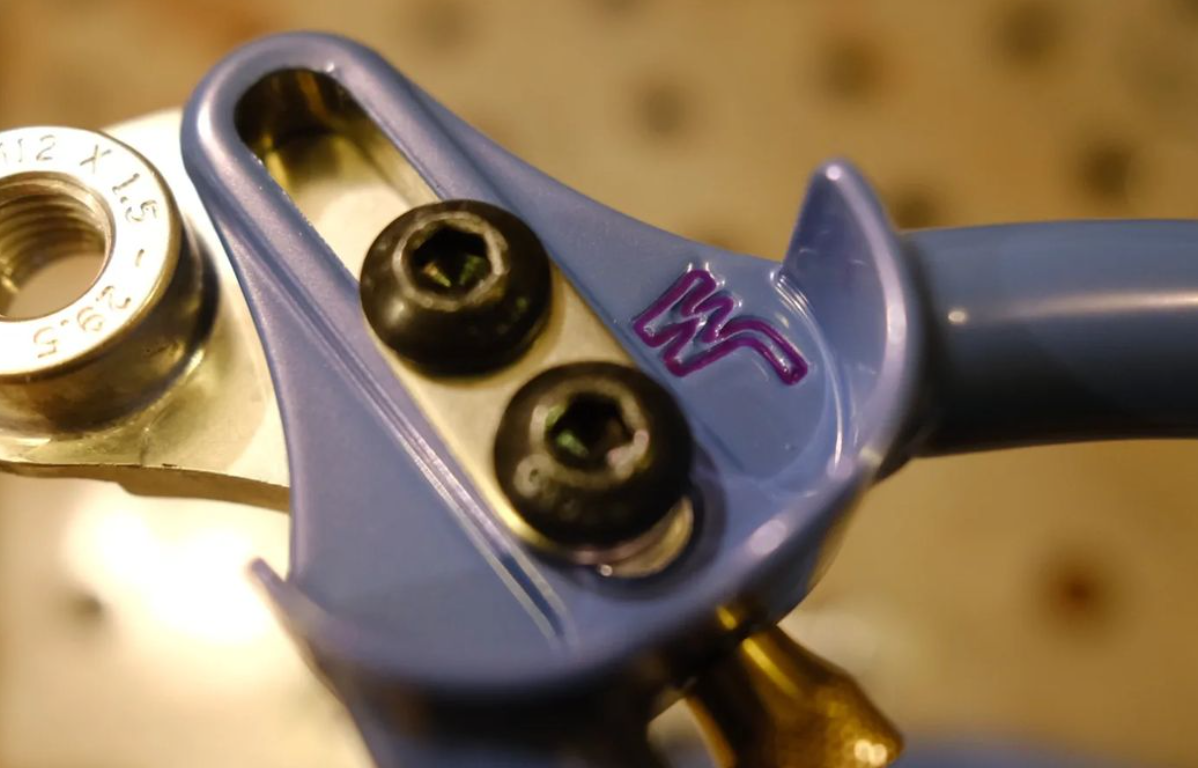

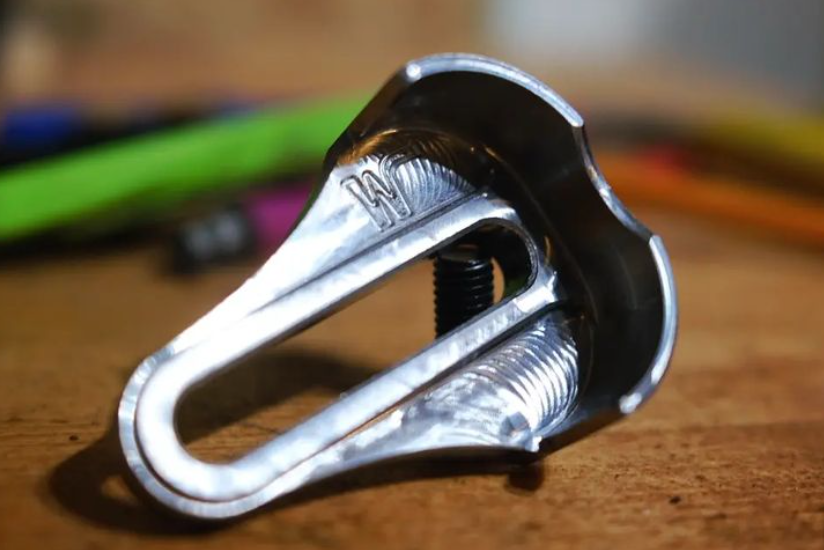

• Custom logo/text engraving available

• ~6.8 oz or 190g

• Available on BikeCAD!
